ผลิตภัณฑ์รั้วดิจิทัล

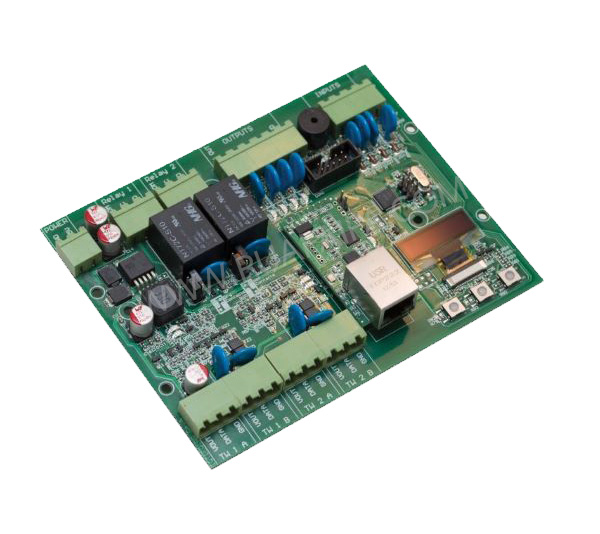

Controller-Node2
รายละเอียดสินค้า
Robust surge protection is included on all inputs and outputs
2 relay outputs
3 sets of communications debug LED indicators for TX and RX
1 power-on LED indicator
Temperature and supply-voltage-level monitoring can be reported
Up to 31 TW sensors per channel
Removable connectors ease replacement
Designed to mount into a Nemtek battery-backed power pack (PP-2.0AMP)
Specifications
Size : L140mm x W110mm x H22mm
Weight : ~170g
Power supply: 10V – 15Vdc
Current consumption (relay only option, E-TW/NODE2): 220mA 40mA per energised relay 9mA per TW sensor
ตัวอย่างการใช้งาน
